Ceramic 3*5mm 250C 2000R To 10000R 230V PTC Thermistor Heating Element For Electric Mosquito Repellent Fluid Heater Machine

Dongguan Reomax Electronics Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Ceramic 3*5mm 250C 2000R To 10000R 230V PTC Thermistor Heating Element For Electric Mosquito Repellent Fluid Heater Machine

  • 1
  • 2
  • 3

Brand Name : Tianrui

Model Number : TRPTC

Certification : ROHS

Place of Origin : China

MOQ : 5000pcs

Price : Negotiable

Payment Terms : 100% TT,Paypal

Supply Ability : 5000pcs every day

Delivery Time : 10-14 days

Packaging Details : Carton

Resistance at 25C : 2000R To 10000R

Tolerance : ±20

Material : Ceramic

Function : PTC heater element

Size : 3*5mm Or Customized

Contact Now

Model PTC Heating Element
Material Ceramic
Operating Temperature -20℃ to +105℃
Tolerance ±20%
Type Ceramic PTC Thermistor, PTC Heating Element, PTC Heater
Shape Disc
Voltage 230V
Resistance at 25C 2000R to 10000R
Size 15x3mm or Customized
Function Self-Heating

Feature

•PTC heating tablets have the characteristics of automatic constant temperature and do not require a temperature control system. It is the core component of all PTC heater.

•There are four types of electrodes for customers to choose from: chemical nickel plating+silver, melting spray metal aluminum, print aluminum+silver, printing aluminum.

•The working voltage is very wide. When the working voltage changes twice, the surface temperature changes very small.

•When using multiple PTC heating tablets together, it should be connected in parallel and cannot be connected in series.

•This variety does not lead to the wires and insulation layers. If the customer cannot use it, please choose a product with an insulating membrane or a metal shell type.

Description

PTC thermistor ceramic heating element has the special functions of constant temperature, temperature adjustment and self-temperature control. When AC or DC voltage is applied to the PTC element, below the Curie point, the resistivity is very low and the temperature rises very quickly. Once the Curie point temperature is exceeded, the resistivity suddenly increases, causing the current to drop to a stable value, achieving the purpose of automatic temperature control and constant temperature. No additional temperature control circuit device is required, and the Curie temperature of the PTC element can be adjusted through formulation according to different temperature requirements to achieve the required working temperature in different application scenarios.

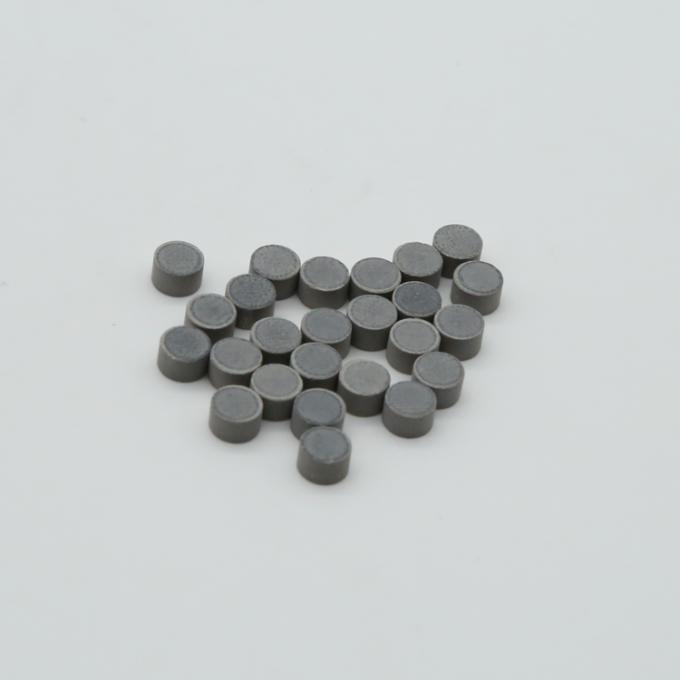

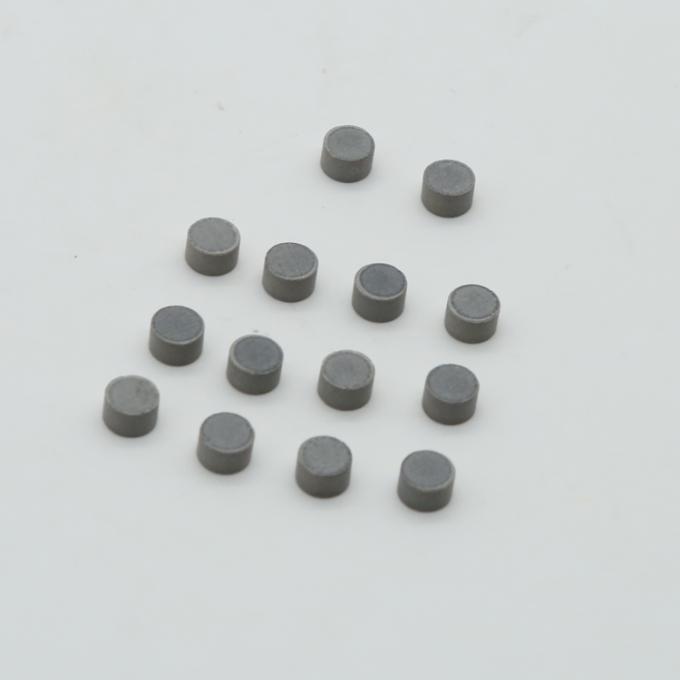

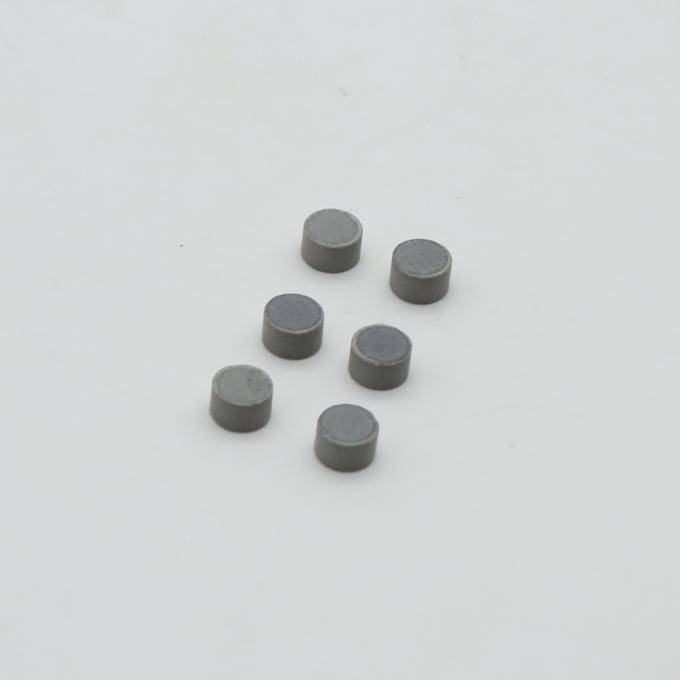

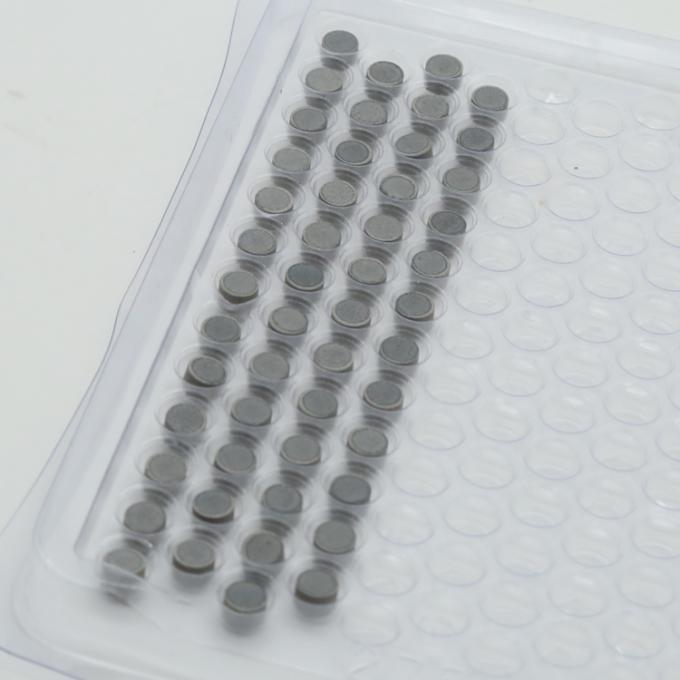

Pictures

Ceramic 3*5mm 250C 2000R To 10000R 230V PTC Thermistor Heating Element For Electric Mosquito Repellent Fluid Heater MachineCeramic 3*5mm 250C 2000R To 10000R 230V PTC Thermistor Heating Element For Electric Mosquito Repellent Fluid Heater MachineCeramic 3*5mm 250C 2000R To 10000R 230V PTC Thermistor Heating Element For Electric Mosquito Repellent Fluid Heater MachineCeramic 3*5mm 250C 2000R To 10000R 230V PTC Thermistor Heating Element For Electric Mosquito Repellent Fluid Heater Machine

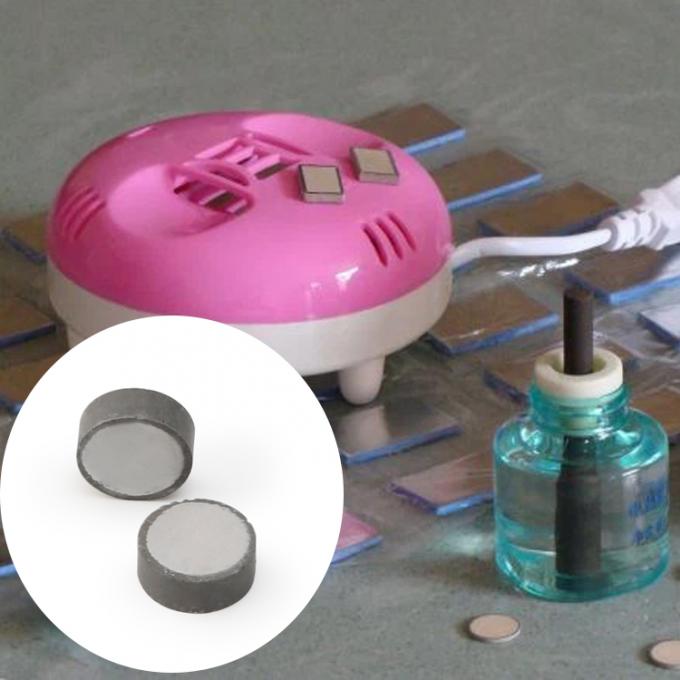

Applicaiton

Using the principle characteristics of the constant temperature heating principle of heating PTC thermal resistance, you can be designed to be designed in a straight hair, hair clip, hair plywood, ion perm, perm, ceramic perm plate, hair clamp, curling, electric comb, negative ion, negative ions, negative ions, negative ions Perm, massage device, mosquito machine, mosquito exorngeer, mosquito repellent, mosquito coil machine, fragrance, perfume, hot -melt rubber gun, feet washing heating, gel machine, insulation cup, water heater, coffee machine, coffee Insulation, coffee heating device, water dispenser, hot and cold water dispenser, hot milk device, water heater, shower heating, electrical mosquito mosquito repellent, dryer, electric heating board, electric scalding, electric iron, electric bonding device, electric heating bonding device Spectrometer, spectrometer, physiotheter, infrared heating, dry clothing machine, motorcycle carburetor, electrical humidifier, electrical instrumentation moisture -proof heating, small crystal device constant temperature tank, constant temperature training box, electronic insulation bottle, heating box, heating cup, heating cup , Insulation drive, insulation cabinet, insulation table, electric heating disk, heat therapy instrument, thermal coffee, steam beauty, molten waxer, steam generator, humidifier, humidifier, chocolate extruder, hot treasure, electric iron, iron soldie Acupuncture, urethra, foot warmer, hand -dried hand, cotton sugar machine, massage, liquefied gas cylinder heating, small warm air heater, hair dryer, heating room, dryer, dry wardrobe, dry clothing machine, industrial, industrial industry, industrial industry, industrial industry Drying equipment, power dust removal bead heater, train locomotive electric heating, mold heating, control cabinet heating moisture -proof, monitor moisture -proof, electric oven, infusion treasure, medical equipment, household appliances, daily appliances, small home appliances. .....etc.

Ceramic 3*5mm 250C 2000R To 10000R 230V PTC Thermistor Heating Element For Electric Mosquito Repellent Fluid Heater Machine

Related types of ptc heating element

Ceramic 3*5mm 250C 2000R To 10000R 230V PTC Thermistor Heating Element For Electric Mosquito Repellent Fluid Heater Machine

Contact:

Bonnie Chan
E-mail:
admin@tianrui-fuse.com.cn
Mobile/Wechat:+86-180 2522 7727

Whatsapp/Wechat:+86-13712758342
